Lead Azide Free Detonator


Product Description

Leveraging the heritage of our GreenDet utilizing RSCB technology and lead azide free energetics, we now offer a top fire version.  Our lead azide free detonator requires no wire connections and offers the same RF safe features found in the GreenDet.

Key Features

  • RF Safe per RP-67 as tested by Franklin Applied Physics Laboratory
  • No special firing panel required
  • Hermetically sealed
  • Cobalt-based CLCP lead-free energetic
  • 99.99% @95% initiation reliability
  • Tested reliability at 400°F for 12 hours
  • Drop-in use, no wire connections required
  • Shunted until properly armed

Applications

As a global leader in the design and manufacture of energetic oilfield technologies, PacSci EMC products are known for reliability and innovation. The Top Fire Detonator is designed as a drop in detonator for use in Owen Oil Tools top fire gun systems.

Specifications

Electrical Specifications
Reactive Semi-Conductor Bridge (RSCB) Initiation (RF Safe)
Designated RF Safe by Franklin Applied Physics
Resistance: NA
All Fire Voltage: 300V
No Fire Voltage: 55V (held under constant VOLTAGE for five minutes)
Static Sensitivity: MIL-DTL-23659F

Explosives
Output: CICP
Net Explosive Weight: 332mg

Temperature Rating
Twelve Hours at 400°F (200°C)

Interface

Top Fire RF Safe Detonator Technical Overview

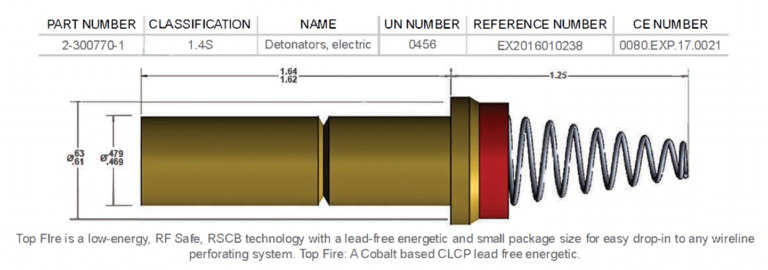

Lead Azide Free Detonator Envelope
